Alweld Marsh Console Series

or
Call 870 347 2628

Description

Package Details

All packages are available in flat or vee bottom hulls.

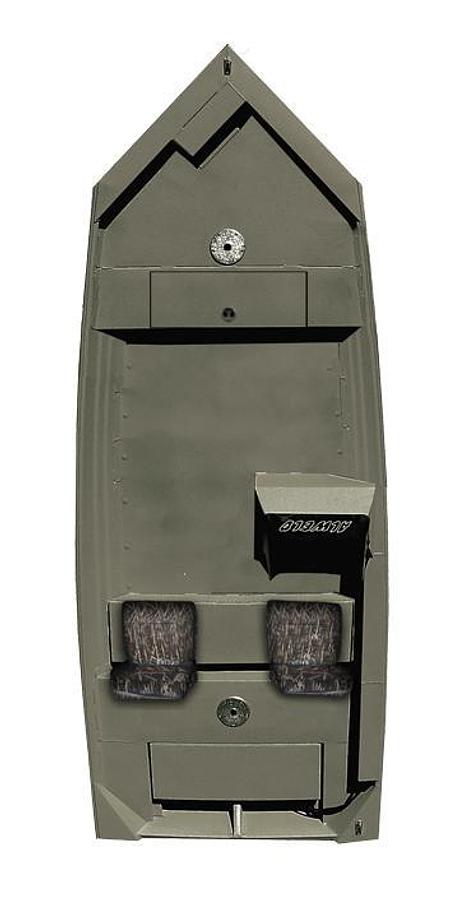

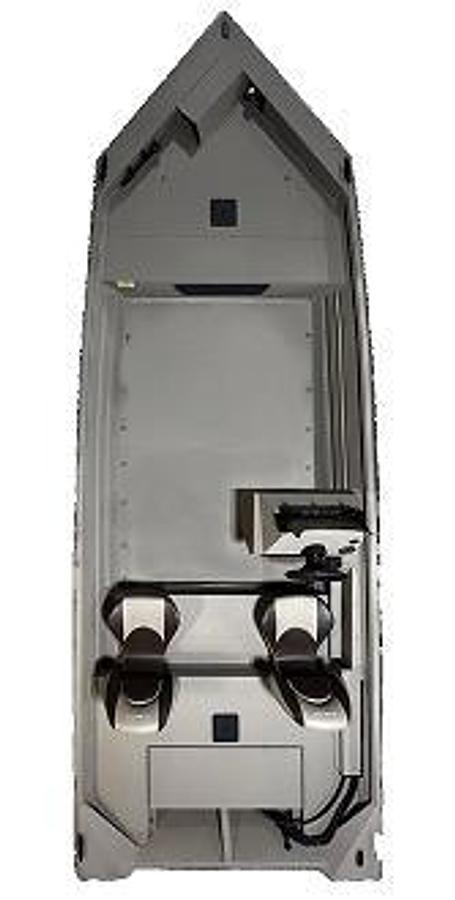

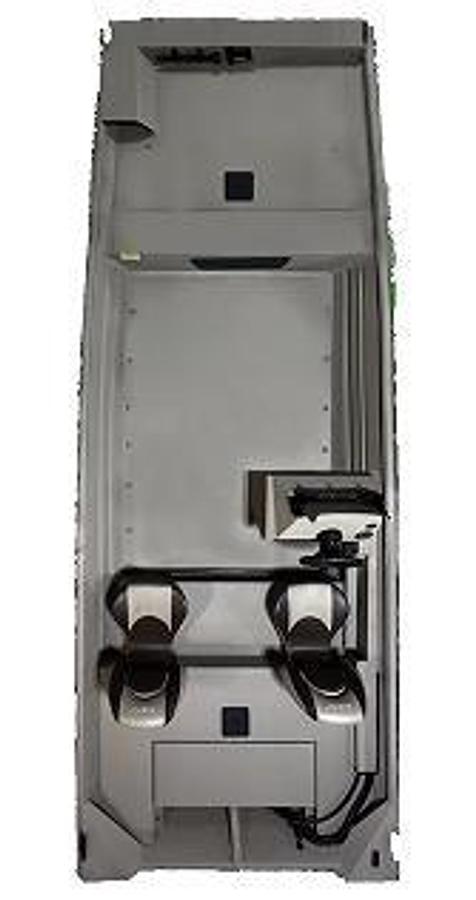

PRO Package Features

Bass Console
Windshield

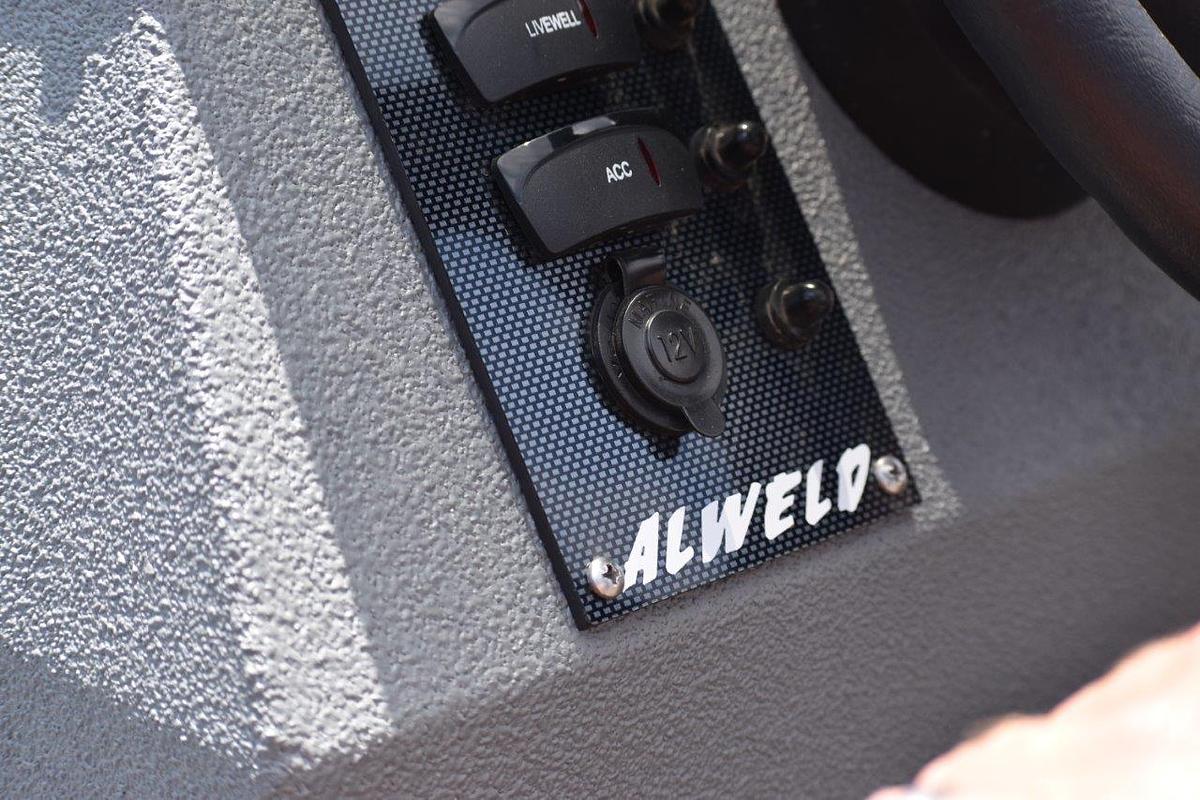

Steering/Switch Panel
Lights
Trolling Motor Setup
Seat box with 2 Seats
Seat Base on Front Deck
Seat Base on Rear Deck
Stump Guard Transom
Trim Tabs
T-Slot Rail
Front Deck with Storage Hole
Floor Only
Standard Colors
4 Deck Cleats

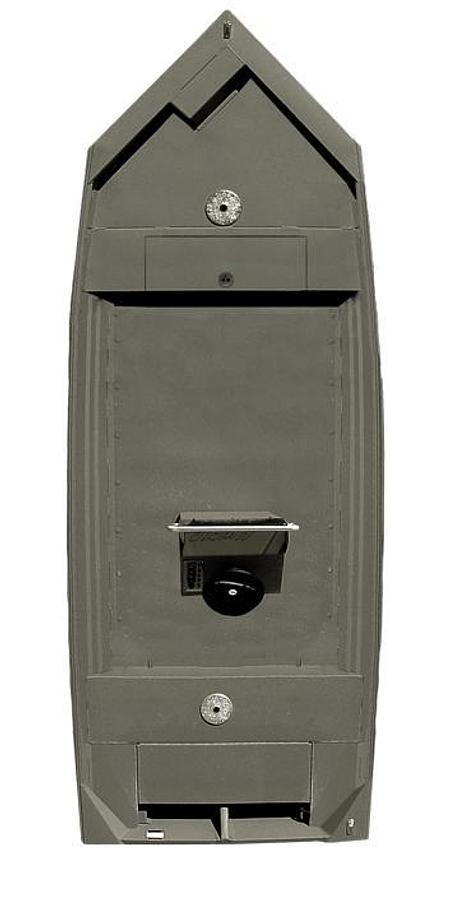

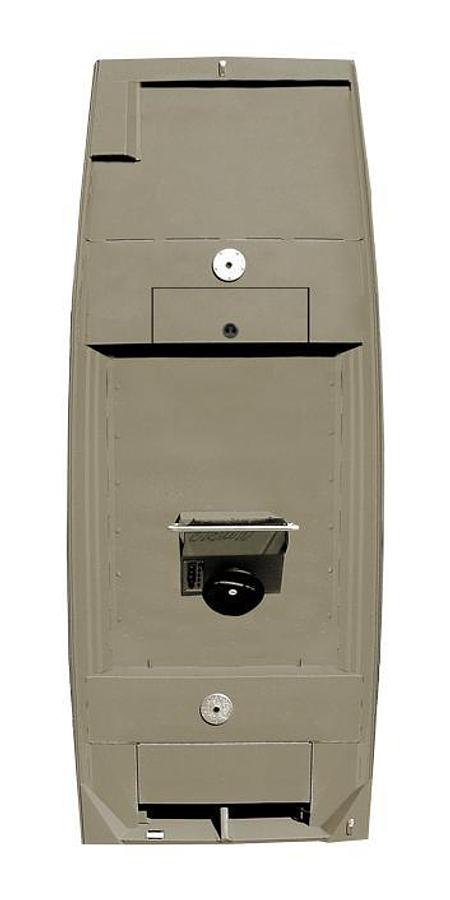

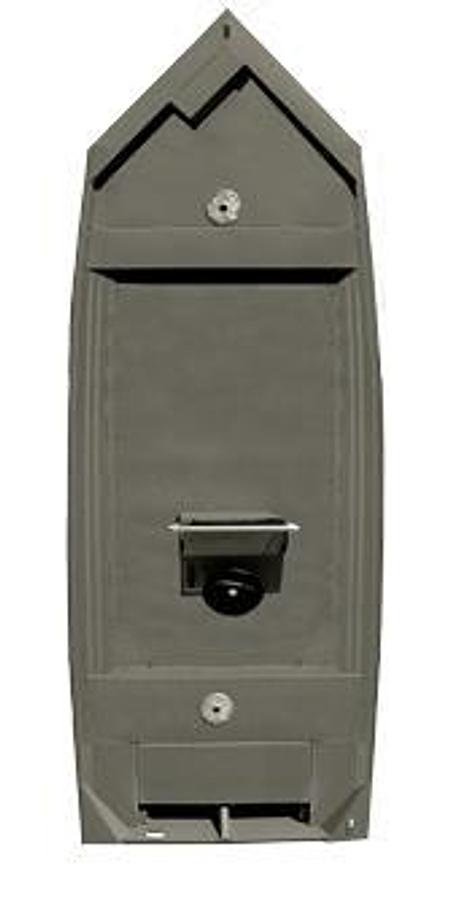

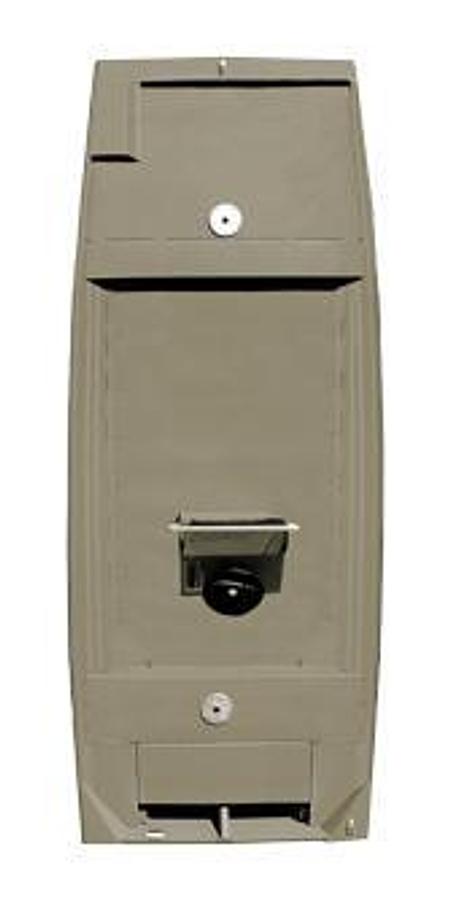

PRO Package HullsCC Package Features

Center Console
Windshield
Grabrail
Lights
Trolling Motor Setup
Seat Base on Front Deck
Seat Base on Rear Deck
Stump Guard Transom
Trim Tabs
T-Slot Rail
Front Deck with Storage Hole
Floor Only
Standard Colors
4 Deck Cleats
Leaning Post with Cushion (2023 models)

CC Package HullsOptions Available

Short Transom (n/a on 56-60″)
Long Transom
Extra Long Transom
Tunnel (Standard 5″, suitable for prop)
Tunnel (Performance 2 1/2″, suitable for jet or prop)
Pontoons
Locking Deck Storage 14″
Locking Deck Storage 24″
Rod Box
Livewell (Aerated)
Transducer Bracket
Trolling Motor Setup
Paint Upgrade
Direct Fill Gas Tank
Bilge Pump
PRO Pkg Bench Seat (1)
PRO Pkg Clam Shell Seats (2)
PRO Pkg Folding Seats (2)
Seat Pad for LW
2 Clam Shell Seats
2 Fishing Seats

Extension Storage

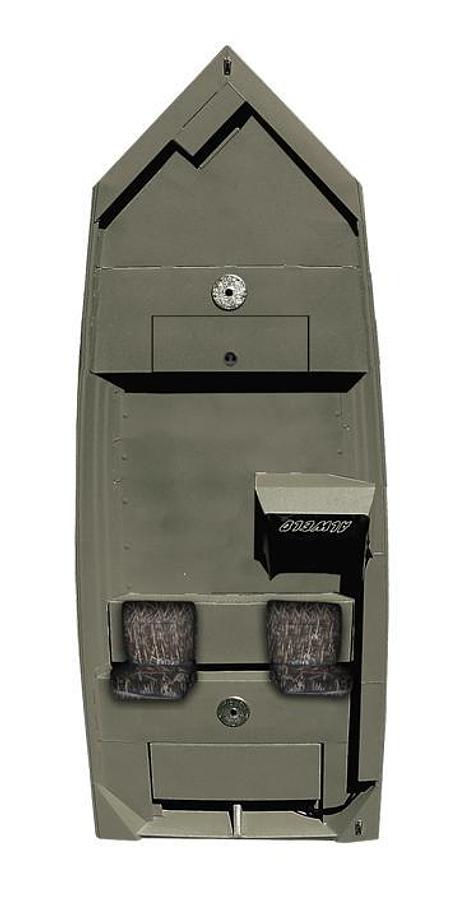

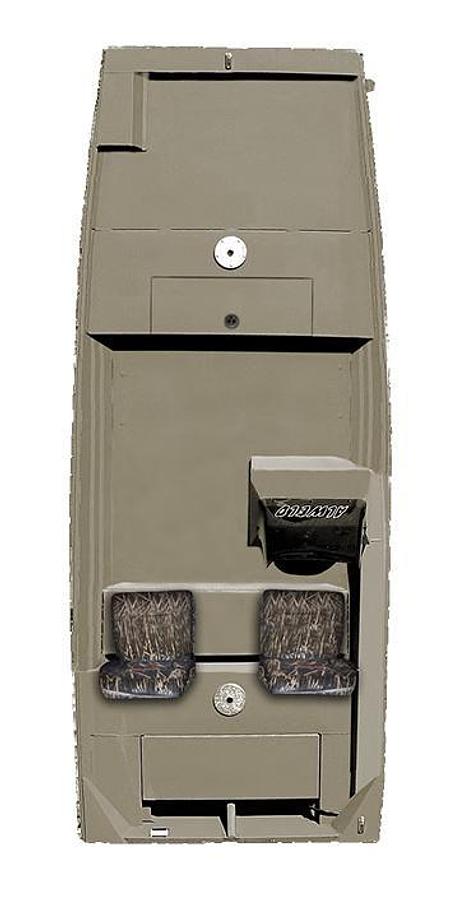

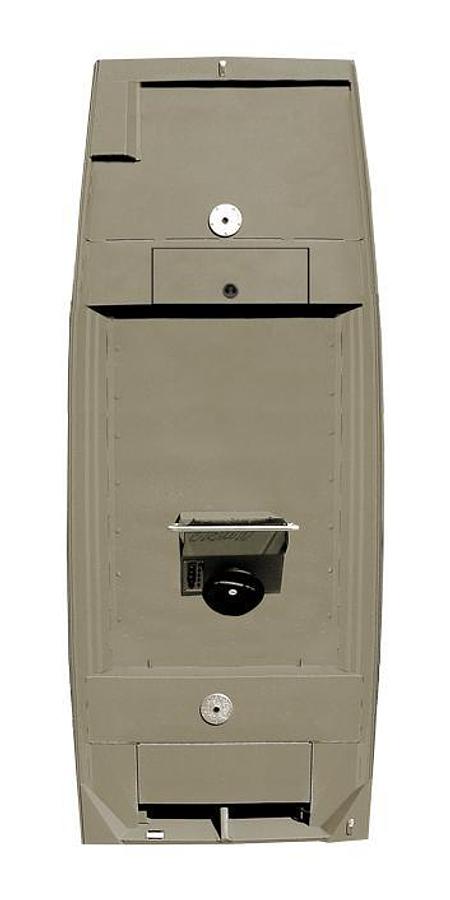

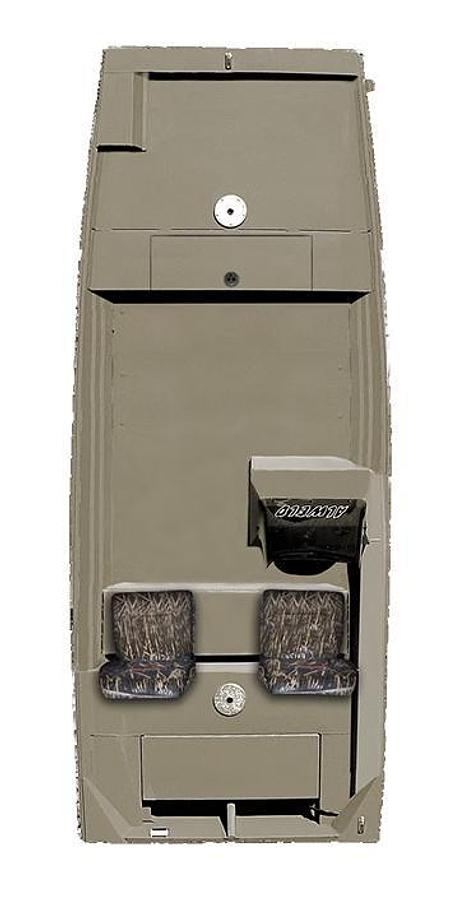

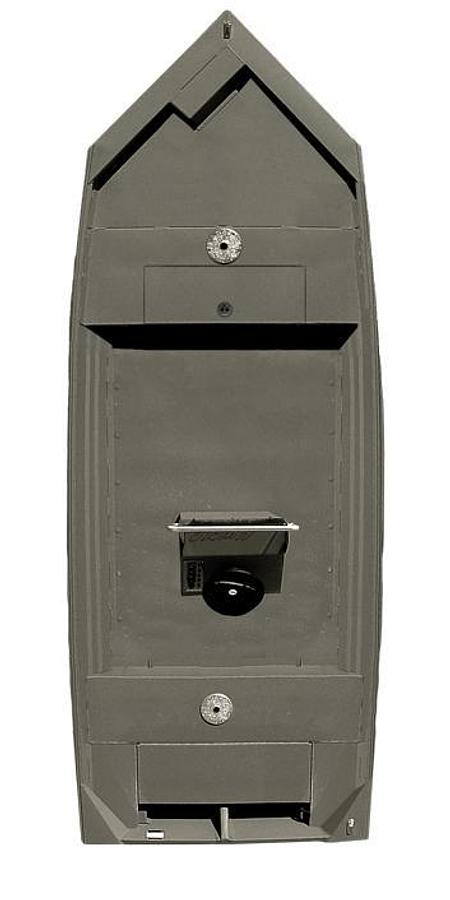

14″ Deck Extension Storage vs. 24″ Deck Extension Storage

Specifications

ManufacturerAlweld
ConditionNew
Model Name1648 Marsh Console; 1752 Marsh Console; 1656 Marsh Console; 1756 Marsh Console; 1856 Marsh Console; 1760 Marsh Console; 1860 Marsh Console; 1960 Marsh Console; 1648VV Marsh Console; 1652VV Marsh Console; 1752VV Marsh Console; 1656VV Marsh Console; 1756VV Marsh Console; 1856VV Marsh Console; 1760VV Marsh Console; 1860VV Marsh Console
Hull Type1648 Marsh Console: Flat Bottom; 1752 Marsh Console: Flat Bottom; 1656 Marsh Console: Flat Bottom; 1756 Marsh Console: Flat Bottom; 1856 Marsh Console: Flat Bottom; 1760 Marsh Console: Flat Bottom; 1860 Marsh Console: Flat Bottom; 1960 Marsh Console: Flat Bottom; 1648VV Marsh Console: Vee Bottom; 1652VV Marsh Console: Vee Bottom; 1752VV Marsh Console: Vee Bottom; 1656VV Marsh Console: Vee Bottom; 1756VV Marsh Console: Vee Bottom; 1856VV Marsh Console: Vee Bottom; 1760VV Marsh Console: Vee Bottom; 1860VV Marsh Console: Vee Bottom
Bottom Width1648 Marsh Console: 48"; 1752 Marsh Console: 52"; 1656 Marsh Console: 56"; 1756 Marsh Console: 56"; 1856 Marsh Console: 56"; 1760 Marsh Console: 60"; 1860 Marsh Console: 60"; 1960 Marsh Console: 60"; 1648VV Marsh Console: 48"; 1652VV Marsh Console: 52"; 1752VV Marsh Console: 52"; 1656VV Marsh Console: 56"; 1756VV Marsh Console: 56"; 1856VV Marsh Console: 56"; 1760VV Marsh Console: 60"; 1860VV Marsh Console: 60"
Side Height1648 Marsh Console: 20"; 1752 Marsh Console: 22"; 1656 Marsh Console: 22"; 1756 Marsh Console: 22"; 1856 Marsh Console: 22"; 1760 Marsh Console: 22"; 1860 Marsh Console: 22"; 1960 Marsh Console: 22"; 1648VV Marsh Console: 20"; 1652VV Marsh Console: 22"; 1752VV Marsh Console: 22"; 1656VV Marsh Console: 22"; 1756VV Marsh Console: 22"; 1856VV Marsh Console: 22"; 1760VV Marsh Console: 24"; 1860VV Marsh Console: 24"
Beam1648 Marsh Console: 68"; 1752 Marsh Console: 72"; 1656 Marsh Console: 78"; 1756 Marsh Console: 78"; 1856 Marsh Console: 78"; 1760 Marsh Console: 82"; 1860 Marsh Console: 82"; 1960 Marsh Console: 82"; 1648VV Marsh Console: 67"; 1652VV Marsh Console: 72"; 1752VV Marsh Console: 72"; 1656VV Marsh Console: 76"; 1756VV Marsh Console: 76"; 1856VV Marsh Console: 76"; 1760VV Marsh Console: 82"; 1860VV Marsh Console: 82"
HP Rating1648 Marsh Console: 40; 1752 Marsh Console: 60; 1656 Marsh Console: 60; 1756 Marsh Console: 75; 1856 Marsh Console: 90; 1760 Marsh Console: 90; 1860 Marsh Console: 90; 1960 Marsh Console: 90; 1648VV Marsh Console: 40; 1652VV Marsh Console: 60; 1752VV Marsh Console: 60; 1656VV Marsh Console: 60; 1756VV Marsh Console: 75; 1856VV Marsh Console: 90; 1760VV Marsh Console: 90; 1860VV Marsh Console: 90
Persons1648 Marsh Console: 4/466; 1752 Marsh Console: 4/465; 1656 Marsh Console: 4/465; 1756 Marsh Console: 4/462; 1856 Marsh Console: 4/462; 1760 Marsh Console: 4/462; 1860 Marsh Console: 4/462; 1960 Marsh Console: 4/462; 1648VV Marsh Console: 4/466; 1652VV Marsh Console: 4/465; 1752VV Marsh Console: 4/465; 1656VV Marsh Console: 4/465; 1756VV Marsh Console: 4/462; 1856VV Marsh Console: 4/462; 1760VV Marsh Console: 4/462; 1860VV Marsh Console: 4/462
Max Weight Cap. (lbs)1648 Marsh Console: 825; 1752 Marsh Console: 924; 1656 Marsh Console: 924; 1756 Marsh Console: 944; 1856 Marsh Console: 990; 1760 Marsh Console: 990; 1860 Marsh Console: 990; 1960 Marsh Console: 990; 1648VV Marsh Console: 825; 1652VV Marsh Console: 924; 1752VV Marsh Console: 924; 1656VV Marsh Console: 924; 1756VV Marsh Console: 944; 1856VV Marsh Console: 990; 1760VV Marsh Console: 990; 1860VV Marsh Console: 990
Boat Weight (lbs)1648 Marsh Console: 565; 1752 Marsh Console: 640; 1656 Marsh Console: 600; 1756 Marsh Console: 635; 1856 Marsh Console: 675; 1760 Marsh Console: 730; 1860 Marsh Console: 775; 1960 Marsh Console: 820; 1648VV Marsh Console: 490; 1652VV Marsh Console: 520; 1752VV Marsh Console: 555; 1656VV Marsh Console: 575; 1756VV Marsh Console: 610; 1856VV Marsh Console: 645; 1760VV Marsh Console: 695; 1860VV Marsh Console: 735
Std. Transom1648 Marsh Console: S; 1752 Marsh Console: S; 1656 Marsh Console: L; 1756 Marsh Console: L; 1856 Marsh Console: L; 1760 Marsh Console: L; 1860 Marsh Console: L; 1960 Marsh Console: L; 1648VV Marsh Console: S; 1652VV Marsh Console: S; 1752VV Marsh Console: S; 1656VV Marsh Console: L; 1756VV Marsh Console: L; 1856VV Marsh Console: L; 1760VV Marsh Console: L; 1860VV Marsh Console: L
Front Deck1648 Marsh Console: 47"; 1752 Marsh Console: 47"; 1656 Marsh Console: 47"; 1756 Marsh Console: 47"; 1856 Marsh Console: 47"; 1760 Marsh Console: 47"; 1860 Marsh Console: 47"; 1960 Marsh Console: 47"; 1648VV Marsh Console: 44"; 1652VV Marsh Console: 41"; 1752VV Marsh Console: 41"; 1656VV Marsh Console: 41"; 1756VV Marsh Console: 41"; 1856VV Marsh Console: 41"; 1760VV Marsh Console: 41"; 1860VV Marsh Console: 41"
Gauge1648 Marsh Console: 0.100; 1752 Marsh Console: 0.100; 1656 Marsh Console: 0.100; 1756 Marsh Console: 0.100; 1856 Marsh Console: 0.100; 1760 Marsh Console: 0.100; 1860 Marsh Console: 0.100; 1960 Marsh Console: 0.100; 1648VV Marsh Console: 0.100; 1652VV Marsh Console: 0.100; 1752VV Marsh Console: 0.100; 1656VV Marsh Console: 0.100; 1756VV Marsh Console: 0.100; 1856VV Marsh Console: 0.100; 1760VV Marsh Console: 0.100; 1860VV Marsh Console: 0.100
