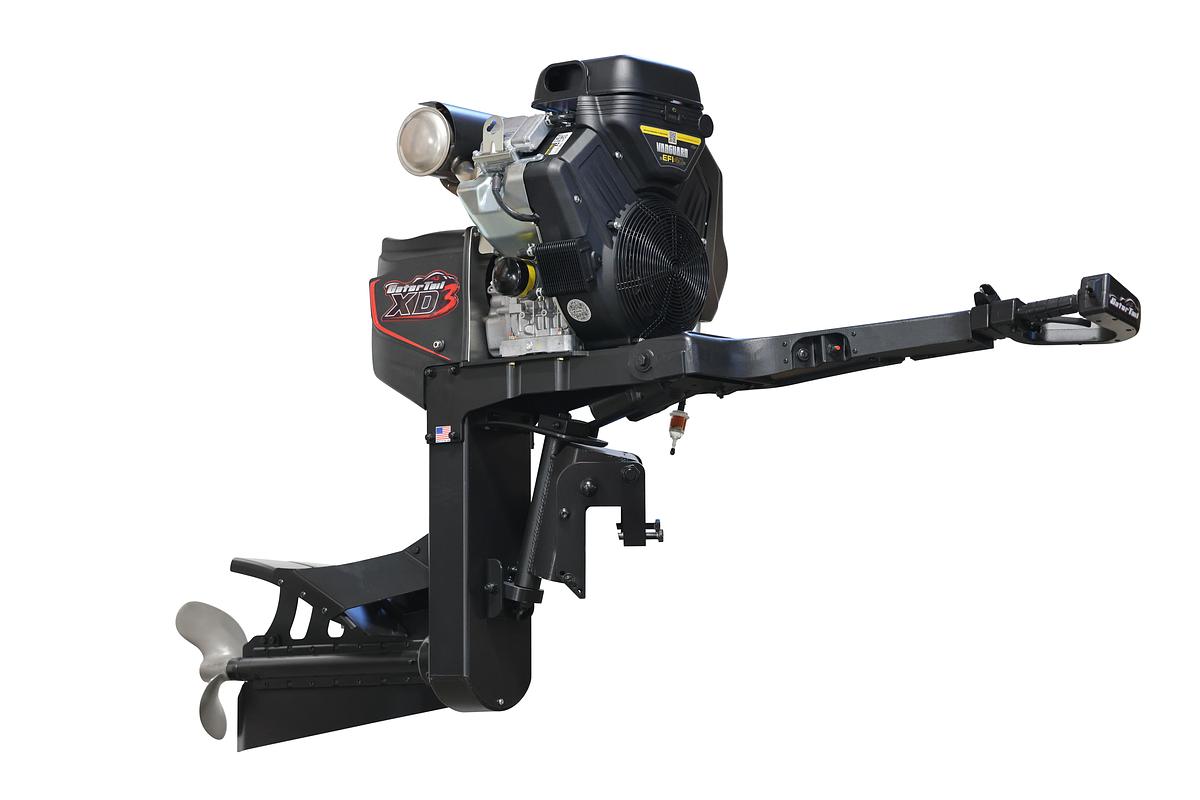

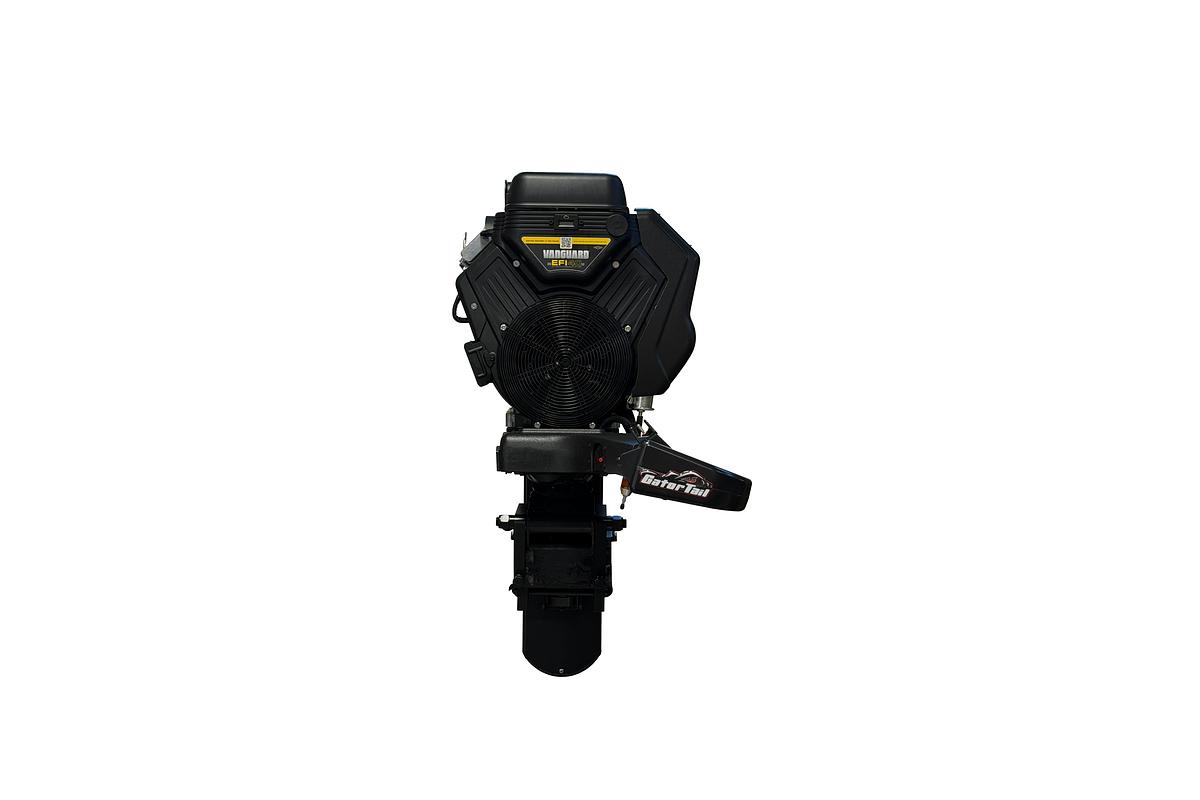

GatorTail GTR 40 XD3

Overview

• Built on a legacy. Engineered for what's next. The new GTR40XD3 features increased backing power, enhanced durability, and reduced handle vibration—raising the standard for surface drive performance.

Pricing and Info

• The GTR40XD is more than just a number. It combines the ergonomic handle, high heat reverse cover, and three-piece lower unit of the GTRXD with a new camshaft, piston and connecting rod design for more power and durability, a new performance muffler for increased airflow, a new cylinder head profile for improved cooling, and a new EFI calibration for increased power and performance.

Features

• 1. 993ccc Big Block CDI 40HP Vanguard Marine Engine: All Vanguard engines come with a 3 year warranty.
• 2. Tachometer/Hour Meter: Allows proper operation data and precise maintenance windows.
• 3. 4750rpm High Rev Coils: Engine comes standard with a 4750 rpm limiter, protects against over revving.
• 4. 20-50amp Charging System: Allows you to run all your favorite electronic accessories.
• 5. Hi Flow Stainless Steel Muffler: Extended protection in saltwater environments.
• 6. F-N-R Toggle Switch: No linkage to freeze or misalign
• 7. Momentary Forward Bump Switch: For trailering & precise maneuvering in tight spaces
• 8. 250 ft lb Reverse Brake: Increased power in reverse
• 9. Recessed Kill and Key Switch: Flush with handle to prevent accidental engine kill
• 10. Waterproof Heavy Duty Trim Switch: Durable, commercial strength switch for reliable and all weather and all condition operation.
• 11. Metal Squeeze Grip or Twist Throttle: Weatherproof throttle ergonomically designed for comfortable and reliable operation and integrated into handle to prevent freezing.
• 12. Integrated Free Floating Handle with Tension Adjustment: Enhances safety and control while standing up or sitting down.
• 13. Anti Vibration System 2.0: Advanced vibration reducing bushing makes longer runs easy.
• 14. 5000 lb./ft. Power Trim Actuator: Allows reliable trim performance in all conditions.
• 15. Locking Tilt Pin: Allows engine to be tilted out the water easily for maintenance, storage or while trolling in the shallows.
• 16. 2000 Hr. Electric Clutch: Forward and Neutral gears provided smoothly and reliably by Gator-Tail electric clutch.
• 17. Planetary Reverse Transmission: Gator-Tail’s exclusive design provides powerful and reliable reverse, rated up to 250 hp.
• 18. Fully Adjustable Transom Clamp: Allows each Gator-Tail engine to be custom mounted to individual hull for maximum performance.
• 19. Dual Pivot Point Trim Impact System: Allows engine to freely kick up on impact with no effect on trim unit.
• 20. Polymer Bushings: Allows engine to turn and rotate easily for safe and comfortable operation.
• 21. Weedless Propeller: Standard on all models.
• 22. Three Piece Extruded Lower Unit: Allows for easier maintenance.
• 23. High Thrust Reverse Cavitation Plate: Maximizes thrust for reverse power and keeps mud and water splash-backs to a minimum.
• 24. Lifetime Belt Warranty: Gator-Tail’s belt driven technology is with you forever, we guarantee it. Break a belt, we’ll give you another one... forever.
• 25. Weed and Line Cutter: Helps free heavy vegitation from propeller.
• 26. Hand Guard: Protection when driving in timber.

Additional Details

• A seamless transition to hop between your bay boat or bass boat to your mudboat. The ease of operation and smooth transition will now be reflected in your GatorTail. This new technology enhances the safety, engine protection, and performance of our flagship engine.
• American Made Forward and Reverse Propulsion Forward, Neutral, Reverse Toggle Switch Control (tiller model) Outboard Style Controls (steering model) Lightweight Design Smooth Shifting Hard Anodized Billet Construction

Options

• Console Steetring: Call for pricing
• Paint OptionsBlack (Standard)Timber, Nat Gear, Gator Grass Add $262.50
• Gator Black (standard)
